Introduction

Segments data and assigns them to groups based on their similarity. The goal is to find a natural grouping of the data.

Euclidean distance

The distance between points $i$ and $j$ with $k$ attributes is:

d_{ij} = \sqrt{\sum_{k=1}^{K}(x_{ik} - x_{jk})^2}

Centroid distance

A centroid is a point with value in each attribute that is the average of all points in the cluster, given by:

c_k = \frac{1}{n_k} \sum_{i=1}^{n_k} x_i

where $n_k$ is the number of points in cluster $k$ and $x_i$ is the $i$ -th point in cluster $k$ .

Centroid distance is the distance between centroids of two clusters.

K-means clustering

Algorithm:

Pick $k$ as wanted, then randomly assign each point to one of the clusters
Repeat the following steps until no improvement is made:
1. Compute the centroid of each cluster
2. Reassign each point to the closest centroid

Hierarchical clustering

Algorithm:

Start with each point as a separate cluster.
Merge the two closest clusters, until all points are in one cluster.

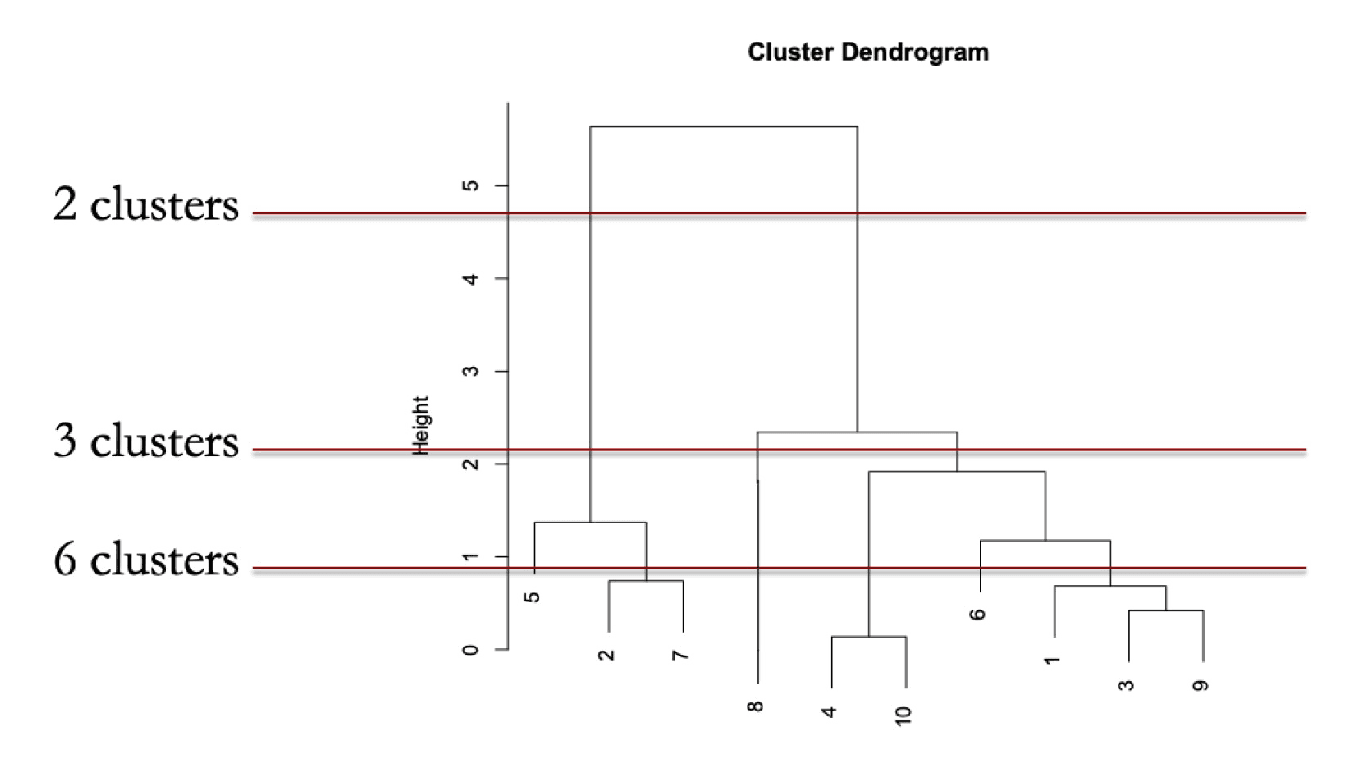

Draw a dendrogram to visualize the clusters.
Draw horizontal line to cut the dendrogram. Num. of vertical lines the cut intersects is the number of clusters.
- Good choice if line has lots of vertical wiggle room (i.e. two clusters are farther from each other)
- Balance the objective with wiggle room

A dengdrogram is a tree-like diagram that shows the arrangement of the clusters. The height of each branches should be proportional to the centroid distance between the clusters.

Comparing clustering methods

K-means: faster, but $k$ must be specified.
Hierarchical: can help with choosing $k$ , but slower as distance computations, might not be feasible for large datasets.
