Tuples vs. Sets

Tuples are ordered collections of elements, whereas sets are unordered.

For example: $(1,2)$ is different from $(2,1)$ , but $\{1,2\}$ is the same as $\{2,1\}$ .

Set notation

Symbol	Meaning	Example
$\emptyset$	Empty set	$\emptyset$
$U$	Universal set	Everything
$\{\emptyset\}$	Singleton set	$\{\emptyset\}$
$\{a,b,c\}$	Set with elements	$\{0,1,2\}$
$\in$	Element of	$1 \in \{0,1,2\}$
$\notin$	Not an element of	$3 \notin \{0,1,2\}$
$\subset$	Subset	$\{0,1\}\subset\{0,1,2\}$
$\\|S\\|$	Cardinality	$\\|\{0,1,2\}\\| = 3, S=\{a,S\}, \\|S\\|=2$
$\cup$	Union	$\{0,1\}\cup\{1,2\} = \{0,1,2\}$
$\cap$	Intersection	$\{0,1\}\cap\{1,2\} = \{1\}$
$\times$	Cartesian product	$\{0,1\}\times\{1,2\} = \{(0,1),(0,2),(1,1),(1,2)\}$
$\setminus$ or $-$	Set difference	$\{0,1,2\}-\{1\} = \{0,2\}$
$\overline{S}$	Complement	$\overline{\{0,1,2\}} = U-\{0,1,2\}$
$\bigcup_{i=n}^{m} S_i$	Generalized union (n->m)	$\bigcup_{i=1}^{n}S_i = S_1\cup S_2\cup\ldots\cup S_n$
$\bigcap_{i=n}^{m} S_i$	Generalized intersection (n->m)	$\bigcap_{i=1}^{n}S_i = S_1\cap S_2\cap\ldots\cap S_n$

Power set

$\mathscr{P}(\{1,2\})=\{\emptyset, \{1\}, \{2\}, \{1,2\}\}$

$\|\mathscr{P}(S)\|=2^{\|S\|}$

Special cases:

The power set of the empty set is the set containing the empty set: $\mathscr{P}(\emptyset)=\{\emptyset\}$ .
$\mathscr{P}(\mathscr{P}(\emptyset)) = \mathscr{P}(\{\emptyset\}) = \{\emptyset,\{\emptyset\}\}$

Set builder

$S=\{x | P(x)\}$ means that $S$ is the set of all $x$ such that $P(x)$ is true.

For example, $\{x | x \in \mathbb{N}, x < 5\} = \{0,1,2,3,4\}$

Number sets

Symbol	Set	Values
$\mathbb{N}$	Natural numbers	$0, 1, 2, 3, \ldots$
$\mathbb{Z}$	Integers	$\ldots, -2, -1, 0, 1, 2, \ldots$
$\mathbb{Q}$	Rational numbers	$\frac{a}{b}$ where $a, b \in \mathbb{Z}$
$\mathbb{R}$	Real numbers	$-0.1, \pi, \sqrt{2}$
$\mathbb{C}$	Complex numbers	$a + bi$ where $a, b \in \mathbb{R}$

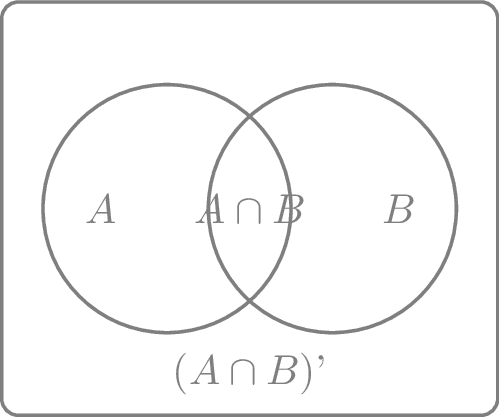

Venn Diagrams

Venn diagrams illustrate concepts like intersections, unions, which is a good way to visualize probabilities. The overlapping regions indicate elements that belong to multiple sets, while non-overlapping regions represent elements unique to specific sets.

In this example, two circles are drawn to represent sets A and B. The overlapping region is labeled as the intersection of sets A and B, denoted by A $\cap$ B.

Relations

Definition of relations

For an arbitrary relation $R$ on two sets $A$ and $B$ , it must be a subset of the Cartesian product $A \times B$ :

R \subseteq A \times B

Where the relation describes some relation between the elements of the sets.

We can denote a relationship between two elements $a \in A$ and $b \in B$ as $aRb \equiv (a,b) \in R$ , and $a\not{R}b \equiv (a,b) \notin R$ .

Hence, a relation on a single set is a subset of the Cartesian product $A \times A$ .

Example

Consider $R$ describes the relation where $\{(a,b) | a \text{ divides }b\}$ . For $A = \{2, 6\}$ :

R = \{(2,2), (2,6), (6,6)\} \subset A \times A

Properties of relations

Property	Definition	Example $A=\{1,2,3\}, R=$	Method of prove
Reflexive	$(a,a) \in R\ \forall\ a \in A$	$\{(1,1), (2,2)\}$	Pick same element, show both $\in R$
Symmetric	$(a,b) \in R \Rightarrow (b,a) \in R$	$\{(1,2), (2,1)\}$	Pick $(a,b)$ and $(b,a)$ and show both $\in R$
Anti-symmetric	$(a,b) \in R \land (b,a) \in R \Rightarrow a=b$	$\{(1,2)\} \\| \{(1,1), (2,3)\}$	Pick $(a,b)$ and $(b,a)$ and show $a=b$
Transitive	$(a,b) \in R \land (b,c) \in R \Rightarrow (a,c) \in R$	$\{(1,2), (2,3), (1,3)\}$	Pick $(a,b)$ and $(b,c)$ and show $(a,c) \in R$

A $\emptyset$ relation has all the above properties.

Example prove

Show that $R =\{(a,b)|(a^2-b^2)\text{ is a multiple of 3}\}$ is reflexive, symmetric and transitive.

Reflexive: Picking any two same number $a \in X$ , $(a^2-a^2)=0$ is a multiple of 3, so $(a,a) \in R$ .

Symmetric: Consider possible elements in $R$ : If $(a^2-b^2)\in R$ (divisible by 3), the symmetric element can be observed to be $(b^2-a^2)=-(a^2-b^2)\in R$ (also divisible by 3).

Transitive: Consider the possible elements in $R$ : If $(a,b) \land (b,c) \in R$ , the element $(a,c) \to (a^2-c^2)=(a^2-b^2)+(b^2-c^2)$ (sum of two multiples of 3 is also a multiple of 3), which implies $(a,c) \in R$ .

Equivalence relations

A relation is said to be equivalence if it is reflexive, symmetric, and transitive.

Equivalence class

The set of all elements related to a given element $a$ is called the equivalence class of $a$ , given by:

[a] = \{x | x \in A, (a,x) \in R\}

Example

Consider $R = \{(1,1), (1,2), (2,1), (2,2), (3,3)\}$ :

[1] = \{1,2\}, [2] = \{1,2\}, [3] = \{3\}

Composition of relations

The composition of two relations $R$ and $S$ is defined as:

R \circ S = \{(a,c) | \exists b \in B \text{ such that } (a,b) \in R \land (b,c) \in S\}

Example

Consider $R = \{(1,2), (2,3)\}$ and $S = \{(2,3), (3,4), (5,5)\}$ :

R \circ S = \{(1,3), (2,4)\}

We leave out the pair $(5,5)$ as it does not have a corresponding pair in $R$ .

Visualization of relations

Directed graphs

A graph where:

Each node represents an element of the set
Arrow from node $a$ to node $b$ exists if $(a,b)$ is in the relation

Example

Consider $R = \{(1,2), (2,3), (3,1)\}$ :

1 -> 2 -> 3
^         |
|_________|

Adjacency matrix

A matrix representation of a relation where:

Rows and columns represent elements of the set
A cell $(row,col)$ is 1 if $(a,b)$ is in the relation, 0 otherwise

Example

Consider $R = \{(1,2), (2,3), (3,1)\}$ :

    0 1 0
M = 0 0 1
    1 0 0

Adjaceny matrix and property of relations

Property	Adjacency matrix
Reflexive	Diagonal elements are 1
Symmetric	Symmetric across the diagonal
Anti-symmetric	No symmetric 1-pairs across the diagonal
Transitive	Square of the matrix is equal to the original matrix
